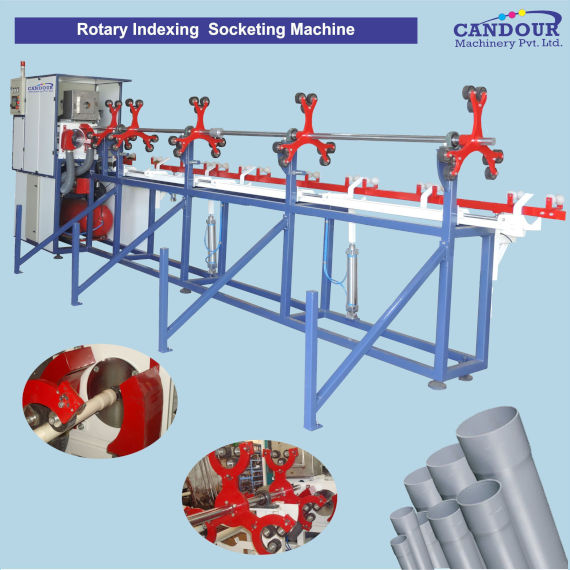

Rotary Indexing Socketing Machine

We, Candour  Machinery Pvt. Ltd.   Where   Technology  combines  with  engineering  brilliance  to  give  the cutting  edge to  the Plastic Processing equipments.

We  believe  that the solution aries from within the problem,  hence one users friendly and cost effective solution to your entire socketing  system. Since each product is unique in it’s own way, We designs & customizes special Socketing Machine to suit your particular need.  Our socketing machines are used by top name in the industry who prefer nothing but the best.

Fully Automatic Pneumatically operated smooth socket PVC Pipe end belling machine from 20mm to 63mm & 63mm to 110 mm with one forming station of Solid Steel mandrel & two stage of heating of PVC pipes &  External Air cooling , Monogram Embossing  &  Automatic Ejection ..



Download Brochure

Special Features:

  • Easy & Quick Changing Tool System.
  • Digital Temp. Controller with Sensor for heating system.
  • Infrared Heater’s heating chamber (inside SS) with suitable Insulation.
  • Forced Air Cooling to cool pipe .
  • Hard Chrome Plated Mandrels.
  • High Quality Standard make Pneumatic Cylinder & Valves.
  • Pipe Movement through Pneumatic system for up to 6 meter long PVC Pipes
  • Power full Pipe ejection system after socketing.
  • Easy operation process with digital display and alarm Indication.
  • PLC Controlled Machine with Data Storage Facility.
  • Suitable For PVC Pipe From 20 mm to 63 mm & 63mm to 110 mm

Product Details:

Minimum Order Quantity1 Number
Automation GradeFully auto
Phase3 Phase
MaterialSteel
Production Capacity5
Voltage440 v,50 hz
BrandCANDOUR
Power Consumption7 KW
Air Pressure Required6 Bar
Cooling Of Pipeair
MechanismAuto



Additional Information:

  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: Transport
  • Production Capacity: 10
  • Delivery Time: 45 Days
