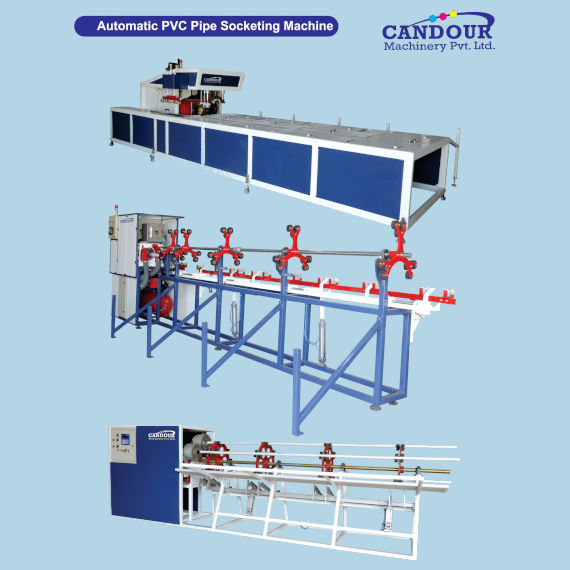

Automatic PVC Pipe Socketing Machine

Automatic PVC Pipe Socketing Machines have easy and quick changing die system, digital temperature controller and sensors to provide functionality to the heating system. The machines come with excellent insulation and an ejection system that make the task of socketing much quick & easier. PVC Pipe Socketing Machines have easy operation process and alarm indication. Supplied are the semi-automatic machines, equipped with infrared oven and tubular heaters. Offered machines are preferred for their pneumatic clasp clamping and can be used as both in-line and off-line socketing machines..

Fully Automatic Socketing Machine

This machine is provided with easy as well as speedy die changing design. It is incorporated with embossing device that allows it to make monogram on all formed sockets. It is also included with highly adjustable stands and a powerful pipe ejection system. The simple operation process of the Fully Auto Online Socketing Machine is an on line and off-line model, provided with simple operation. It allows for solvent cement joint and SWR joint.

We, Candour Machinery Pvt. Ltd., where Technology combines with engineering brilliance to give the cutting edge to the Plastic Processing equipments.

Fully Automatic Pneumatically operated smooth socket PVC Pipe end belling machine:

– from 63 mm to 200 mm with one forming station of Solid Steel mandrel
– Single stage of Infrared heating of PVC pipes, External Air cooling
– Monogram Embossing & Automatic Ejection.

Single Machine is Suitable for Solvent cement Joint, SWR Joint & Ring Fit (RR) Joints. Changing Mode for variant is by only selector switch only. Balance all will be fully Automatic.

Fully Automatic PVC Pipe Socketing Machine Specification:

• Socketing output varying from 170 to 450 Kgs / hour depending on the machine model
• Power load Varies from 3Kw to 6Kw for rotary models and 7.2Kw – 13Kw for linear bed type models
• Dimensions rotary models – 23” x 3.5” x 5” ( L x W x H ), linear model – 24” x 7” x 6” ( L x W X H )
• Size range in rotary models – 19~25, 20~50, 32~75, 40~90, 63~110, 110~ 200, 1/2″ ~ 2″
• In linear bed type models – 63~ 200, 90~250, 110~ 315 and beyond
• In SWR socket fully auto models – 75~ 110 (Type A & B), also, 75~160 (Type A & B)
• Net weight rotary models – Conduit 3m 650kgs, solvent Joint 6m 850 ~ 1300Kgs
• Linear models – 2.2 MT ~ 3.4 MT

Features:

• Long-lasting
• Flexible
• Durable

Special Features of PVC Pipe Socketing Machine

• Easy & Quick Changing Tool System.
• Digital Temp. Controller with Sensor for heating system.
• Infrared Heater’s heating chamber (inside SS) with suitable Insulation.
• Forced Air Cooling to cool pipe .
• Hard Chrome Plated Mandrels.
• High Quality Standard make Pneumatic Cylinder & Valves.
• Pipe Movement through Pneumatic system for up to 6 meter long PVC Pipes
• On line and off line mode will useful for using machine in both way.
• Power full Pipe ejection system after socketing.
• Easy operation process with digital display and alarm Indication.
• PLC Controlled Machine with Data Storage Facility.
• Universal Machine for Solvent Cement Joint, SWR Joint & Elastomeric Ring Socket for Dia 63 to 200 mm
